HIK VISION 8 CHANELTURBO HD SURVEILLANCE KIT DS-J142I

HIKVISION 8 CHANEL DVR KIT DS-J142I/7208HQHI

ABOUT THIS ITEM

·         Easy to install

·         High-Definition camera

·         Mega-Pixel Resolution

·         Full Channel HD resolution recording DVR

·         HDMI output for HD local playback

·         Live view from PC, MAC, Smartphone & Tablets

·         User friendly GUI

OVERVIEW

·         BRAND: HIK VISION

·         MODEL No.: DS-J142I/7208HQHI

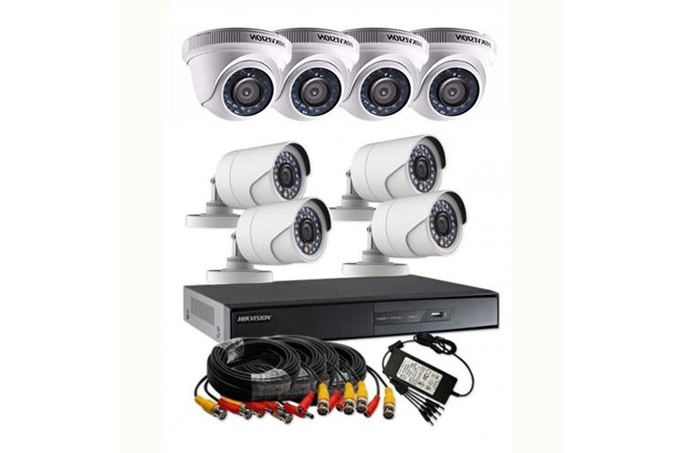

·         8 channels and 1 HDD 1U DVR

·         Power for DVR and 8 Cameras

·         18.3m (60ft) video and power cable x 8

·         Quantity:

1 x DS-7208HGHI-K1

4 x DS-2CE16C0T-IRP 3.6mmS

4 x DS-2CE56C0T-IRP 3.6mm

·         Efficient H.265 pro+ compression technology

·         Encoding ability up to 1080p @ 15 fps

·         5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

·         Up to 12 network cameras can be connected

DESCRIPTIONS:

·         Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264

·         Encoding ResolutionWhen 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,

·         Frame RateMain stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

·         Video Bit Rate32 Kbps to 6 Mbps

·         Dual Stream Support

·         Stream Type Video, Video & Audio

·         Audio CompressionG.711u

·         Audio Bit Rate64 Kbps

·         Video And Audio

·         IP Video Input4-ch (up to 12-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras

·         Analog Video Input8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

·         AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30

·         HDCVI Input1080p25, 1080p30, 720p25, 720p30

·         CVBS Input PAL/NTSC

·         Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)

·         Audio Output1-ch, RCA (Linear, 1 KΩ)

·         Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

·         Synchronous Playback8-ch

·         HDTVI Input4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.,

·         VGA/HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

·         CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

·         Network

·         Remote Connections64

·         Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

·         Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface

·         Auxiliary Interface

·         SATA1 SATA interface

·         Capacity Up to 10 TB capacity for each disk

·         Alarm In/Out N/A

·         USB Interface2 × USB 2.0

·         Serial InterfaceRS-485 (half-duplex)

·         General

·         Power Supply12 VDC

·         Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)

·         Working Humidity10% to 90%

·         Dimensions (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)

·         Weights (Without HDD) ≤ 1.78 kg (3.9 lb)

·         Consumption (Without HDD) ≤ 7.5 W
